Wsrd Green Turbocharger Complete Kit For 2018–2021 Can-Am Maverick X3 Turbo R (Rated To 300 Hp)

Description

Clutching Options:

• KWI Clutching AO Green Clutch Kit + DR Helix
• Designed for the pump gas, WS200X, and race gas, WS225X Packages
• KWI Clutching AO Green Clutch Kit + #4 Helix
• Designed for the E85, WS240X Package
• STM Powersports Rage 4WCP

Spark Plug Options:

• OEM NGK Spark Plug
• OEM Part Number: 415130363
• NGK Part Number: LMAR9AI-8
• Auto Parts Store Number: 97225
• Brisk Spark Plugs

Drive Belt Options:

• World’s Best Belt
• Used frequently with 91/93 octane and Race Gas
• WSRD Ultimax Drive Belt
• Used frequently with E85

BOV Options:

• Treal Performance Charge Tube + BOV

Package Upgrades:

• Treal Performance Catch Can
• Treal Performance Intercooler Kit
• Treal Performance Exhaust System

WSRD Tune	Fuel Octane	Boost – PSI	Crack Pressure
WS200X.91	91 Octane	18-19	10
WS200X.93	93 Octane	20-21	10
WS225X	98+ Octane	26-27	14
WS240X	E85	28-19	14

WSRD Tune	Fuel Octane	Hub HP	Crank HP
WS200X.91	91 Octane	218	242
WS200X.93	93 Octane	223	248
WS225X	98+ Octane	245	272
WS240X	E85	258	286

WSRD Green Turbocharger Packages

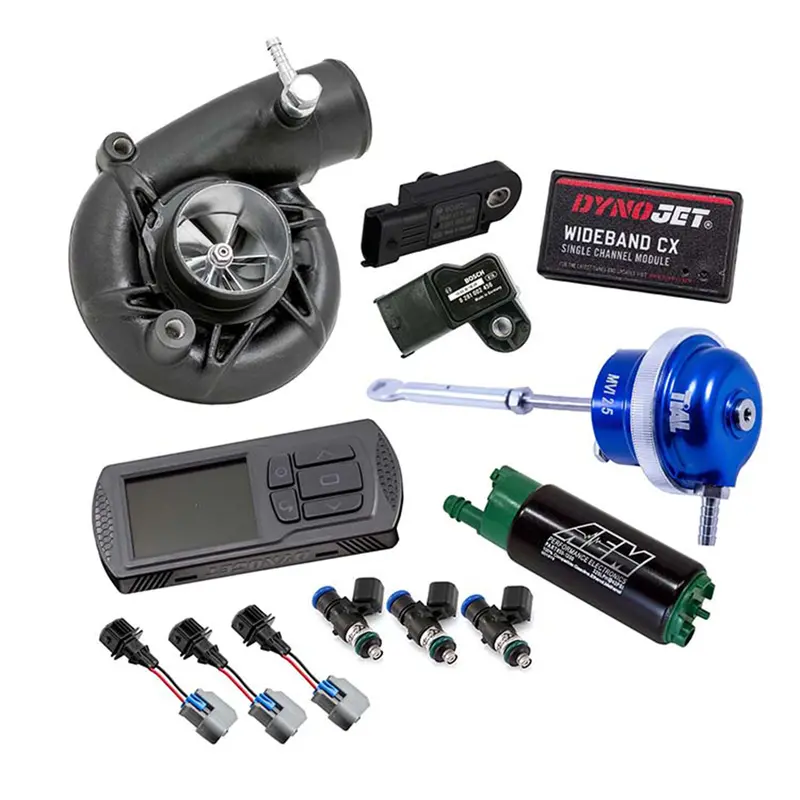

What’s Included?

• Forced Performance Green Turbocharger
• Includes WSRD Install Kit
• Treal Performance High Performance Intercooler Kit
• WSRD Wastegate
• WSRD 3 Bar MAP Sensor Kit
• 100% plug and play with the factory harness
• DynoJet Power Vision (PV3)
• WSRD Custom WS240X E85 Tune
• DynoJet Can-Am Wideband Kit (Logging Capability)
• WSRD Injector Set + PNP Adapters
• WSRD E85 Fuel Pump and Rewire Kit
• Treal Performance Oil Catch Can
• 2018+ Turbo R/Turbo RR Fuel Pump Assembly
• For 2017 Models ONLY
• WSRD Ethanol Tester

Please note: All E85 fuel options require a minimum E70 rating. Please use the ethanol tester supplied before use. WSRD recommends the 2020+ Air Box for all 2017-2019 models for maximizing performance.

Power Output:

• Pump 91/93 | WS200X Tune: 196/210 Wheel Horsepower | ~220/235 Crank Horsepower
• Boost: 18-19 PSI – 91 Octane
• Boost: 20-21 PSI – 93 Octane
• Adjust crack pressure to 10 PSI
• Highly recommended to use a 2020+ X3 air box for best results. OEM unit works great and is a perfect fit.

• 98+ Octane | WS225X Tune: 225 Wheel Horsepower | ~250 Crank Horsepower (Power Output Varies on Exhaust & Intake System)
• Boost: 26-27 PSI
• Please adjust crack pressure to 14 PSI

• Highly recommended to use a 2020+ X3 air box for best results. OEM unit works great and is a perfect fit.

• E85 | WS240X Tune: 260 Wheel Horsepower | ~290 Crank Horsepower
• Boost: 28-29 PSI
• Adjust Crack Pressure to 14 PSI
• Highly recommended to use a 2020+ X3 air box for best results. OEM unit works great and is a perfect fit.

Green Turbo Tune Features:

• Boost pressures are increase up to 19+ PSI respectively for the fuel you choose to run.
• Radiator fan activation temp lowered from ~200* F to ~165* F
• Intercooler fan activation temp lowered from ~140* F to ~95*F
• Torque limits for L raised to 100%, reverse raised to 75%
• Component protection mode for fueling lowered to increase torque and horsepower, especially right after the pedal is floored.
• Ignition timing per cylinder is optimized for maximum power as well as drive-ability, careful consideration was used not only for when at wide open throttle, but as well as cruise, throttle transitions, etc.
• Throttle feel and control is thoughtfully improved, to control through a whoop section, on/off feel in short course style racing or playing in the woods, eco mode is improved but offers the less aggressive pedal for technical rock sections or simply loading on a trailer.
• Speed limits removed, your speed limit is your rev limiter/gear
• Rev limiter raised to 9200 RPM
• Rough road detection is raised to max to prevent power loss.
• When running 3 bar map sensors with our 225X+ tune packages, the boost reported by the PV3 is no longer accurate. We recommend adding a external boost gauge to gather accurate boost readings.
